ECM Mechanika V Slim
ECM Mechanika V Slim
TheECM Mechanika V Slim confirms the saying: less is sometimes more. This comes in handy especially in smaller kitchens where it doesn't take up too much space. Thanks to the vertical reorientation of the boiler, the Mechanika has slimmed down, earning it the nickname "Slim". More
Product code: 2227 Shipping options
Currently unavailable product
TheECM Mechanika V Slim confirms the saying: less is sometimes more. This comes in handy especially in smaller kitchens where it doesn't take up too much space. Thanks to the vertical reorientation of the boiler, the Mechanika has slimmed down, earning it the nickname "Slim". More
Product code: 2227 Shipping options
Currently unavailable product
Preparing espresso and frothing milk at the same time
The ECM Mechanika V Slim coffee machine packs a lot of power into a small package. If you want a great-performing espresso machine and want to save space at the same time, there's no better choice. As a heat exchanger coffee maker , you can brew espresso and froth milk at the same time, making latte and cappuccino making easier and faster. Thanks to its compact size, you'll have more space on your kitchen counter.Two circuits
Two circuits with Heat Exchanger function
As already mentioned, this is a heat exchanger machine (two-circuit coffee machine with Heat Exchanger function) with a vibrating pump. The Heat Exchanger function is a great help in the preparation of milk drinks. The steam is available right away without waiting and you can prepare espresso and whip milk at the same time.
E61 A head that ensures better heat stability than a conventional round head
The ECM Mechanika V Slim is equipped with the widely used E61 head. This is connected to the water-boiler circuit. The water in the boiler is circulated through the chamber of the E61 head, heating it and thus stabilising the temperature during coffee extraction. This is a frequently used technology that is used in higher end coffee machines.
Large stainless steel boiler with insulation to save energy
The new stainless steel boiler has a sufficiently large volume of 2.2 litres and is equipped with thermal insulation for greater energy savings. The redesigned exterior has also led to an improved pressure relief valve, which is now accessible from the top of the machine and located under the hopper lid.
Flushing of the cooling compartment

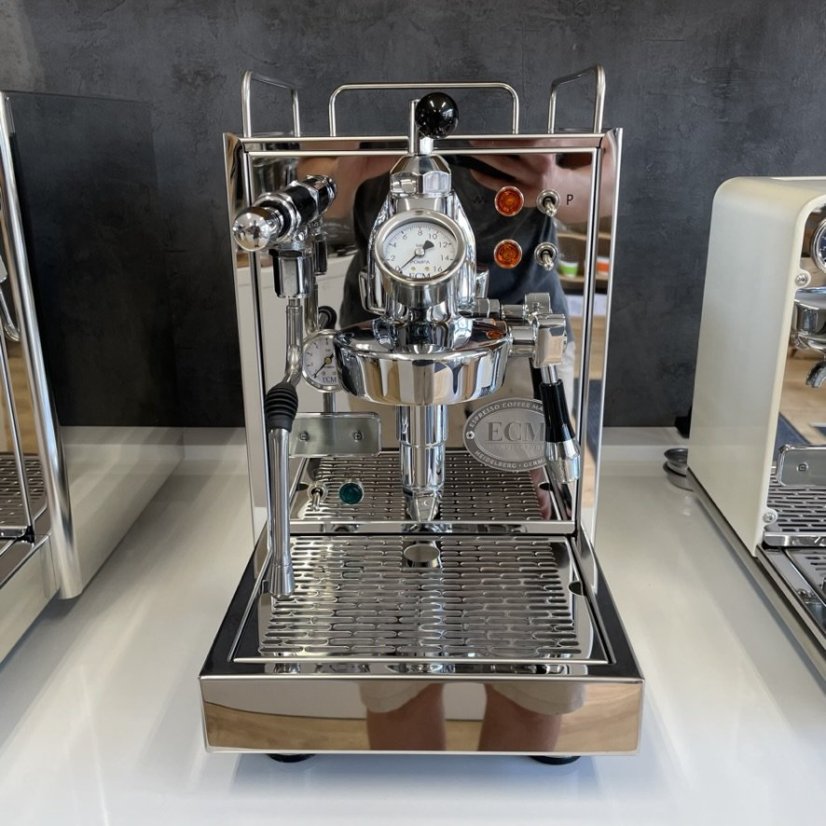

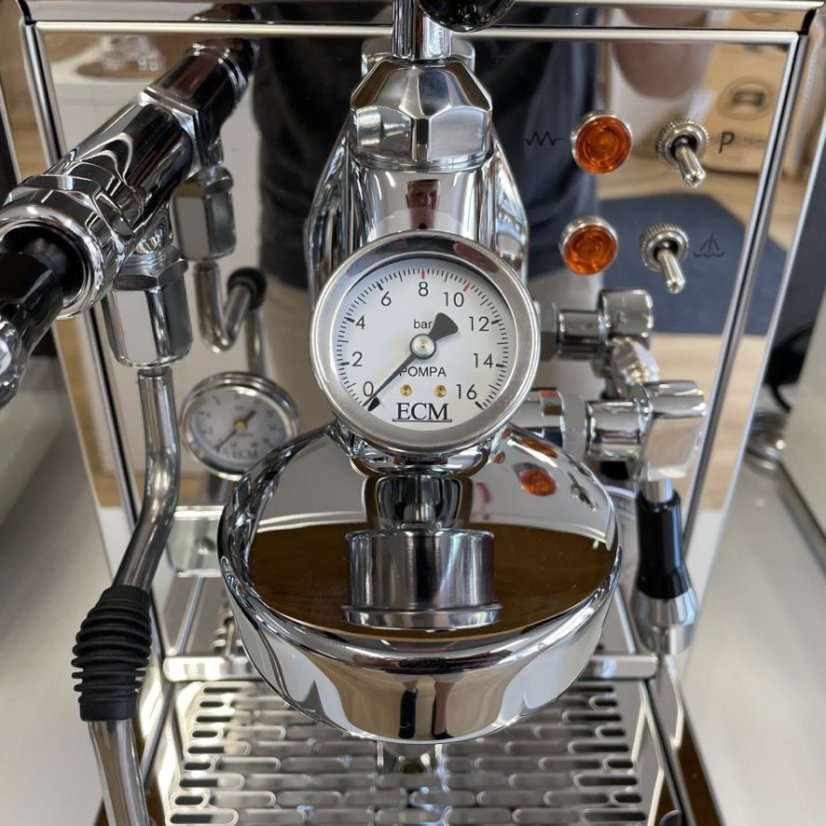

As a double-circuit coffee machine, you will need to pay attention to the temperature and flush the cooling compartment once in a while if the machine has been on for a while. However, thanks to the ECM E61's two pressure gauges and self-circulation, it is a quality professional coffee machine that can fit into even the tightest of spaces.

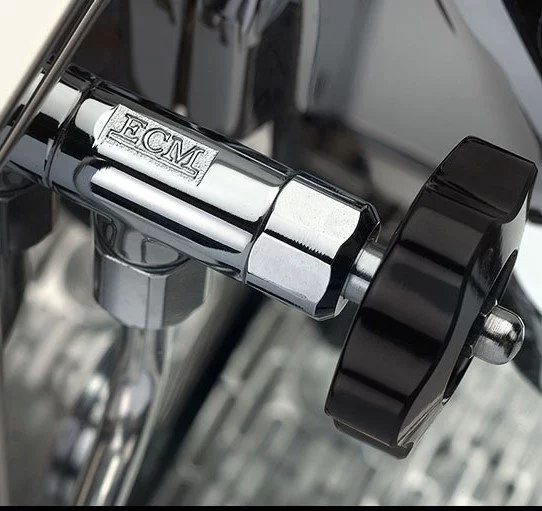

ECM Mechanika V Slim three-way valve
The three-way valve is a very important technical element in the equipment of a coffee machine. It switches between three paths: the hot water source, the coffee head and the waste. When the coffee dispenser is switched on, the water supply to the head opens and the path to the waste closes. When the coffee dispensing is switched off, the path between the coffee head and the waste is opened and the water source is closed. After the coffee has been extracted, the pressure in the coffee head is released and the excess water is drained to the waste.
Over Pressure Valve - over pressure valve included
The overpressure valve is a standard feature here. It is easily accessible and allows you to easily adjust it. The user-friendly extraction pressure control is a very useful and superior feature. This coffee machine also has a vibration pump.
Accessories
- chrome-plated brass lever with single spout
- chrome-plated brass lever with two outlets
- blind bowl
- 1-cup filter
- 2-cup filter
- plastic tamper
- head cleaning brush
- instructions for use
Automatic cleaning | No |
---|---|
Colour | |
Boiler | Single boiler with HX exchanger |
Cappuccino in one squeeze | No |
Pump | Vibrating |
Dosage | Manual |
Display | No |
To | Households |
Functions of the coffee machine | Two cups at a time, Manometer, Manual cleaning, Hot water dispensing |
Coffee machine head | E61 head |
Material | Stainless steel |
Boiler material | Stainless steel |
Coffee bean grinder | No |
Voltage | 230V |
Number of boilers | 1 |
Number of heads | 1-lever |
Power input (W) | 1400 |
Prepared drinks | Americano, Caffè latte, Cappuccino, Espresso, Hot water for tea, Lungo, Warm milk |
Tag | Quality, Cheap, German |
Pressure (bar) | 9 |
Boiler size (l) | 2.2 |
Basic functions | Steam nozzle |
Water tank (l) | 2.8 |
Source of water | Tank |
Height (cm) | 40 |
Width (cm) | 25 |
Depth (cm) | 45 |
